Work station Brambù
CNC machining center with 2 motorized controlled axes and 2 pneumatic automatics, for doors, pergolas and industrial profiles in aluminum, PVC
BRAMBU 'is a work center with internal programming on preset macros which has the X and Y axis controlled and the Z axis with pneumatic joystick movement.
The automatic swivel worktop allows processing on 3 sides without repositioning the profile.
The bimanual system requires the operator on the machine during processing.
Main features
- built entirely in Italy with top quality steels according to the latest CE standards
- working range 2500mm
- maximum machinable profile 150 x 150 mm
- double stroke for processing longer profiles of the basement
- very simple graphic programming with preset macro figures
- electro-spindle with speed variator 0-18.000 rpm
- rotation automatic pine work 180 °
- specialist technical support from the parent company, and spare parts, H24
Brambù is a numerically controlled milling center for companies that intend to renew themselves, increasing production with a semi-automatic CNC machine that has a very simple graphic programming for everyone.

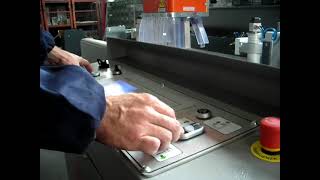

The X, Y controlled axes guarantee a machining precision of + or - 0.2 mm, while the pneumatic Z axis is moved by a joystick, ideal for pass-through machining.
The pneumatic rotation of the worktop from 0 ° - 90 ° - 180 ° and intermediate degrees takes place completely automatically with a considerable saving of time and greater precision.
The 3 Hp power electro-spindle with 0-18.000 rpm speed variator allows to work any material.
Versatile and easy to program machine.
The standard machine has a manual tool changer, but an electro-spindle with rapid tool change, pneumatic manual Cono ISO 20 can be mounted as an option.
The programming is internal only but it is possible to store programs on the PC thanks to the USB port
Optional
- Electrospindle manual pnumatic tool change cone ISO 20
Accessories supplied
- End mill 8mm diameter
- Service wrenches + connecting plug
- Nebulizer for lubrication
n.4 Horizontal pneumatic vices
Technical specifications
Data| Engine | Trifase Rotazione del mandrino 18000 2.2 Kw (2.4 Kw optional) |
| Three Phase | 230/400 V 100 Hz (230/400 V 300 Hz optional) |
| Spindle rotation | 18000 |
| Milling capacity | X=2500 mm Y=260 mm Z=200 mm |
| Overall dimensions | 3100 x 1620 x 1950 |
| Operating pressure | 7 bar |
| Weight | 900 kg |
| Maximum workable profile | 150x150x2500 mm |
