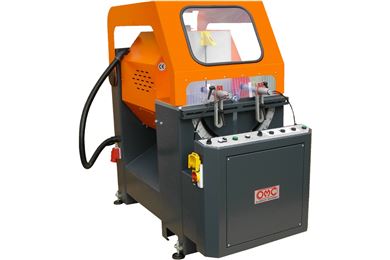

Single head cutting machine TR 450 - 500
Sawing machine with 450 - 500 mm circular blade for doors and windows, profiles and industrial tubulars in aluminum and PVC
TR 450 - 500 is a manual tilting front saw with CE regulation, designed to achieve precision and a large cutting finish, offering fabricators and industry a professional machine that is easy to use and economical
Main features
- built entirely in Italy with top quality steels according to the latest CE standards
- inclination and automatic pneumatic tool advancement
- cutting precision of +/- 1 tenth of millimeter
- great finishing cut as a network
- robustness and ease of use
- price quality among the best on the market
- technical support specialist from the parent company, and spare parts, H24
TR 450 - 500 is a single-head cutting-off machine with front blade exit, for processing aluminum and PVC profiles and tubes.
The inclination is manual on both sides, with fixed degrees of 45 ° - 90 °,
while for the intermediate gradations, with mechanical stop.
The 450 or 500 mm blade is in widia and advancement by manual lever, lubricated by a pneumatic nebulizer with adjustable intensity.
Like all our saws, it is designed for the application of a numerical feedback system, and vacuums for evacuation of fumes and chips.
Accessories supplied
- Fixed blade protection
- Disc Ø 450 - 500 mm with inwidia inserts
- Service keys + connecting plug
Roller conveyor connection bracket < / li>
- Lubrication nebulizer
- n.2 Pneumatic horizontal vices
Technical specifications
Data| Tool motor power | 3 kW 2800 RPM |
| Tool shaft Φ / Tool Φ | 30 / 450 - 500 mm |
| Three Phase | 220-380 V. 50 Hz. |
| Air consumption | 5 N/l |
| Operating pressure | 6-8 atm. |
| Overall dimensions | 1200 x 850 x 1500 h, mm |
| Weight | 230 kg ca. |
